Here are the boards that I laid out for Alan Garfields PicStep drivers.

The boards have been optimised for my home fabrication process (Bigger pads and fatter tracks with more clearance between).


UPDATE : 22/12/04
There is now one board for the power section.. Copied from Alan's site and converted to Eagle free edition.

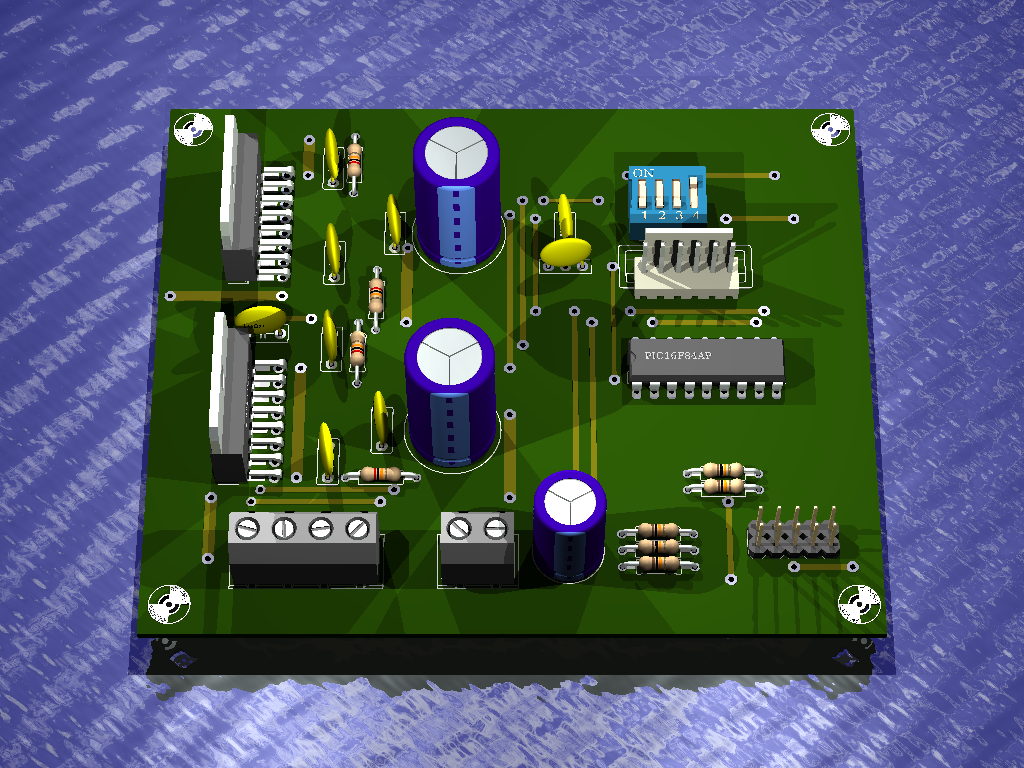

picstep board


Tar file here : picstep.tar.gz (778kB)

Click on the images for a bigger picture.
Three Boards :
1) Breakout : A  lpt port breakout for three axis, with five inputs

ZIP File

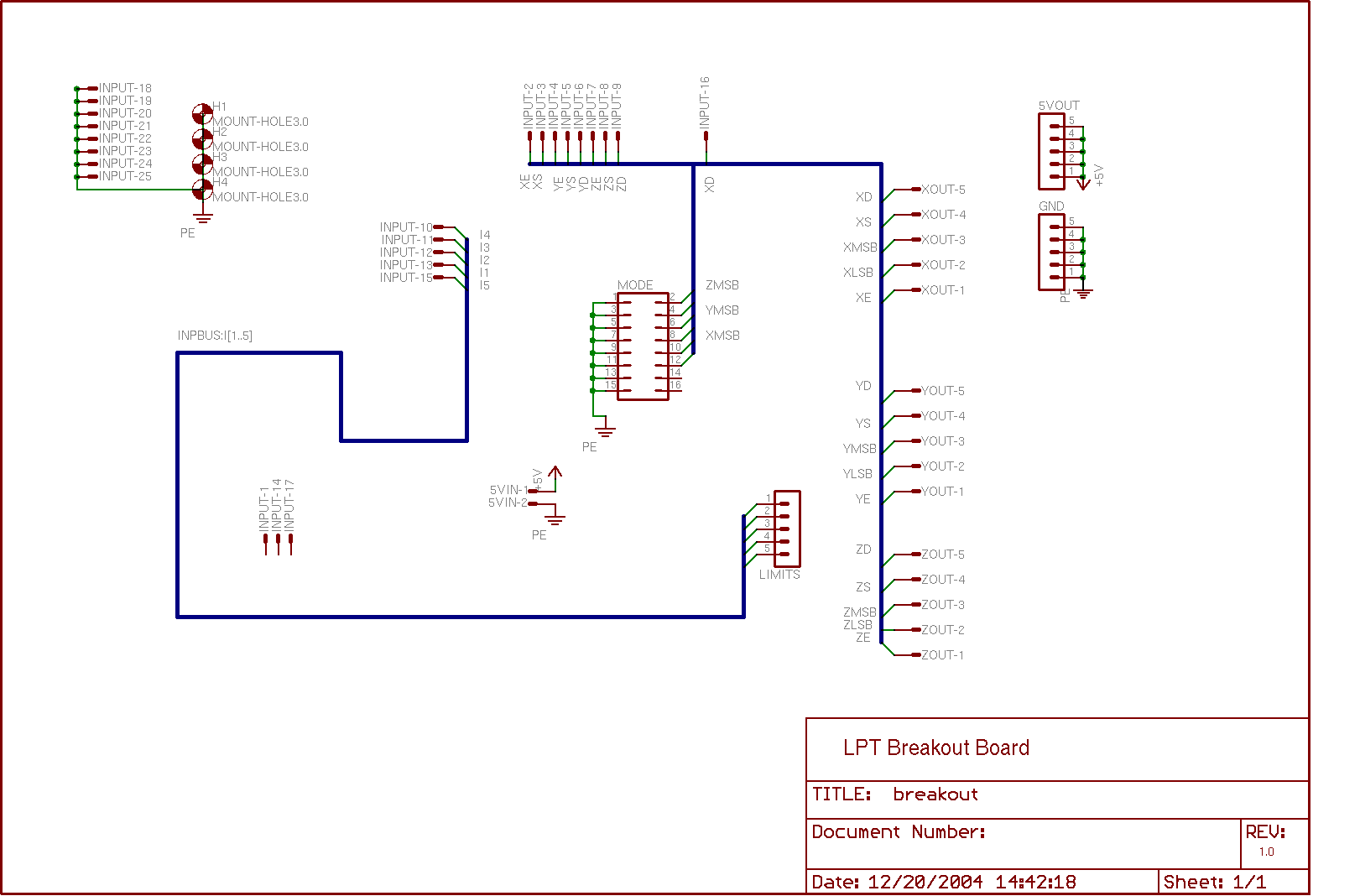

Breakout Schematic

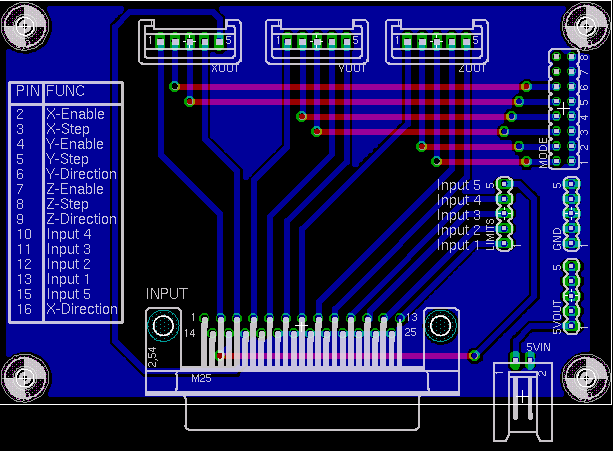

Breakout PCB

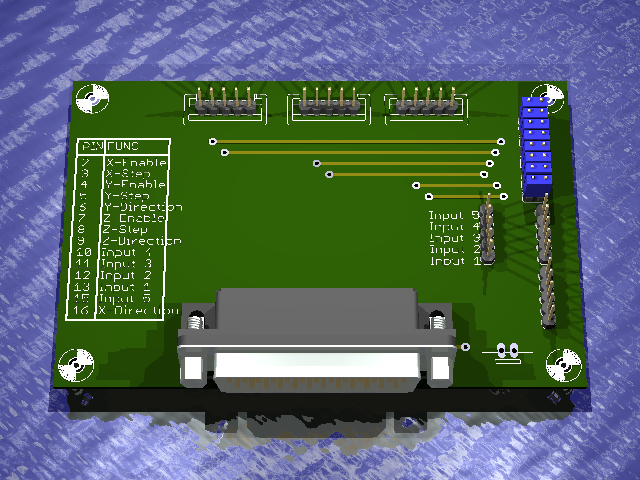

Breakout 3D

Zip File

2) PIC Board : One needed per axis.

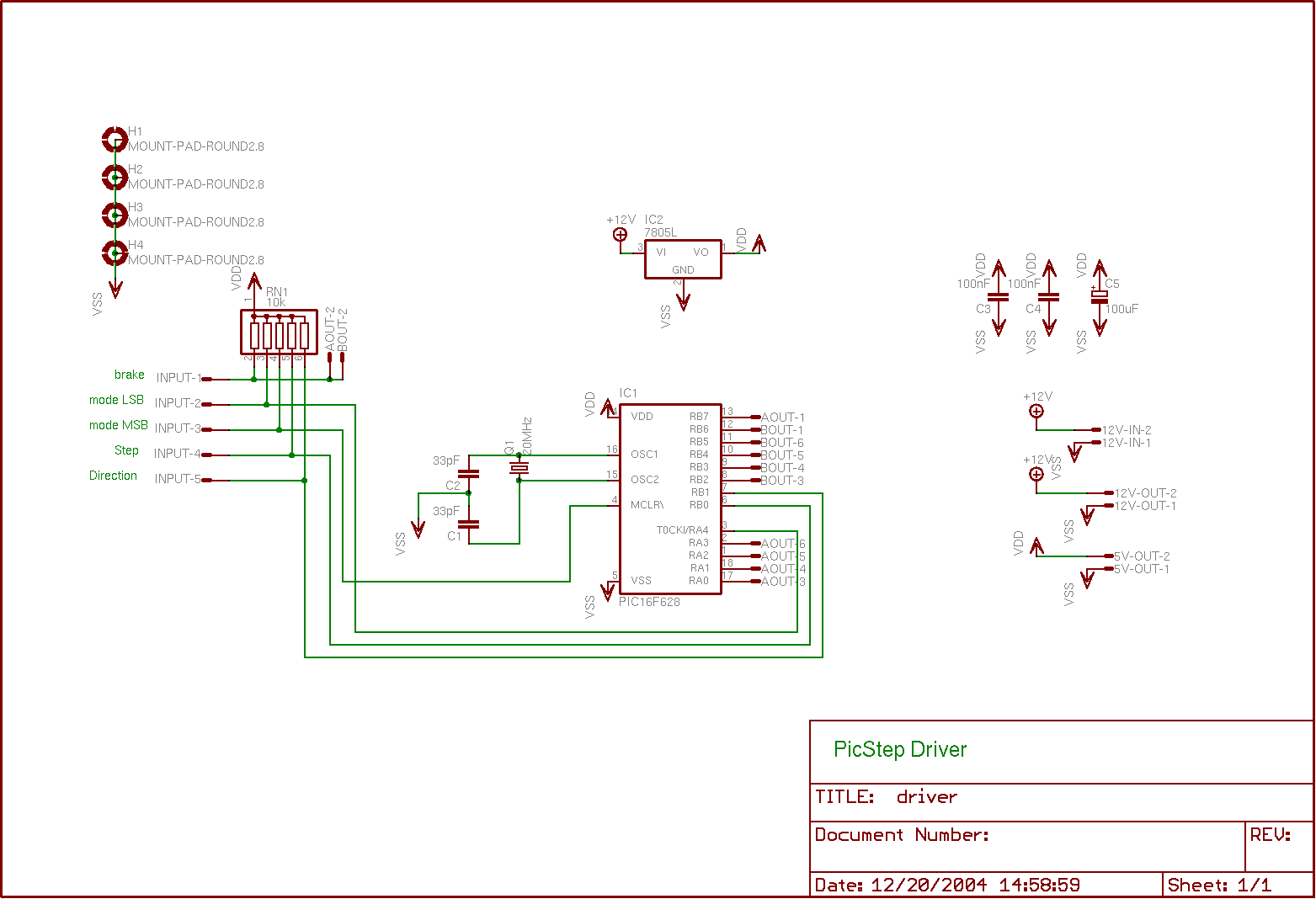

PIC Driver

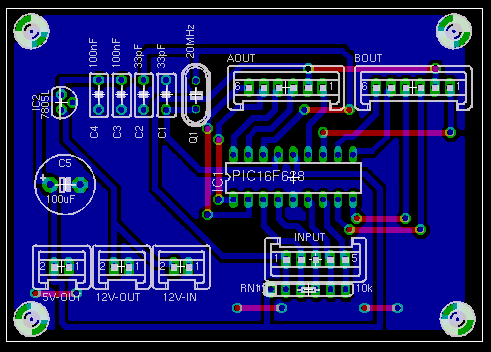

Driver PCB

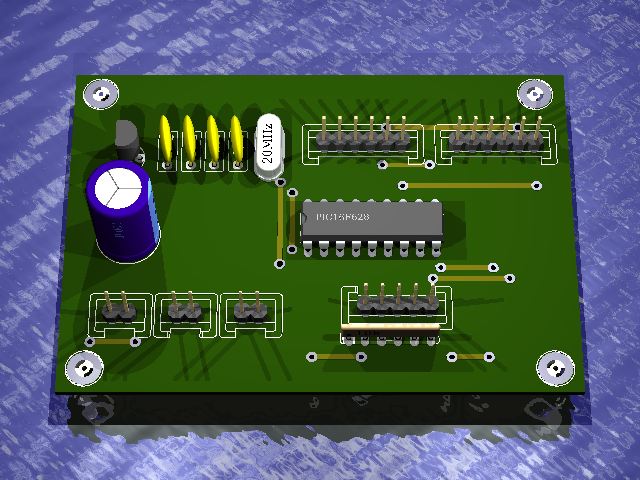

Dirver 3D

3) Power Driver : One per Axis

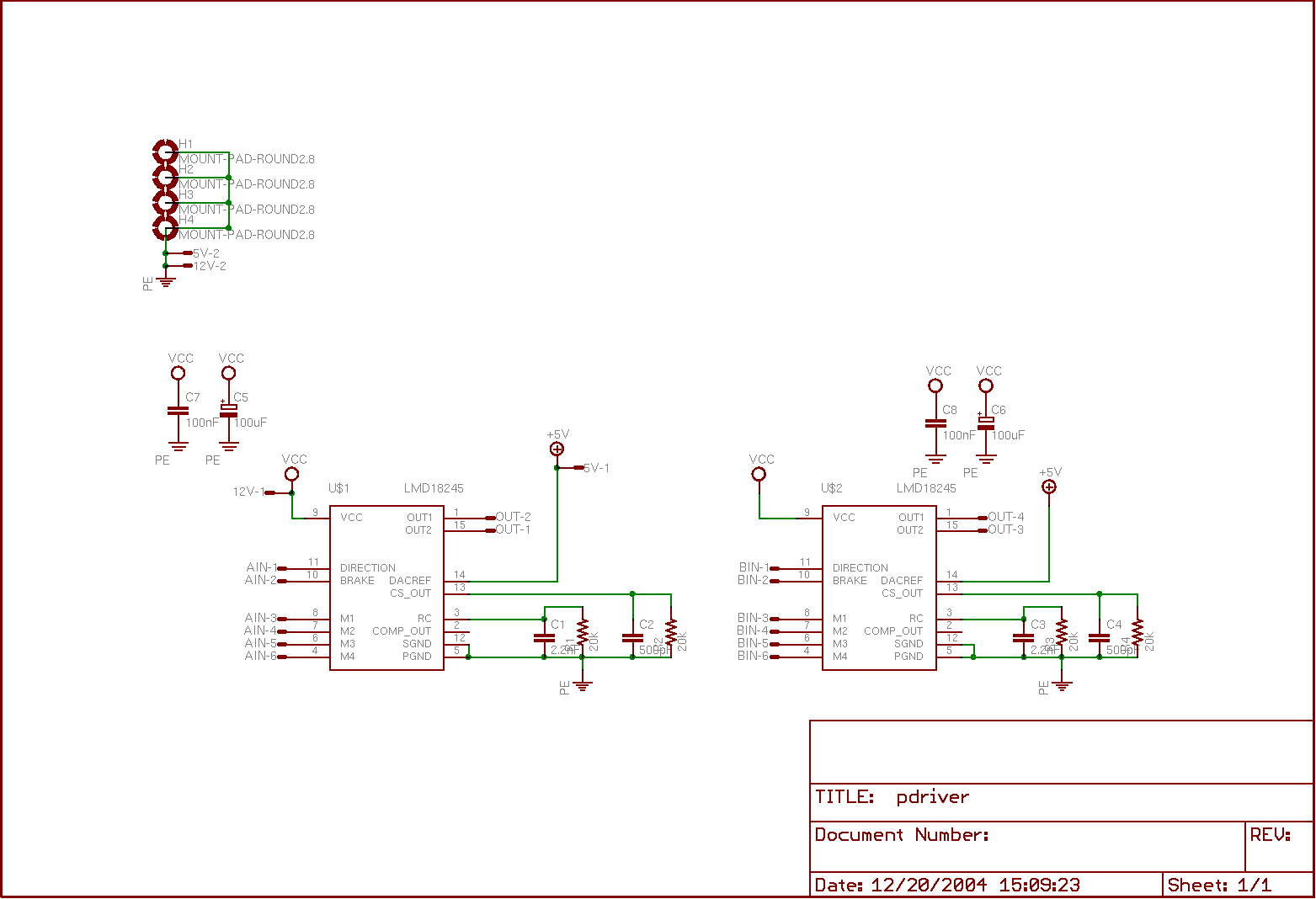

Power Driver Schematic

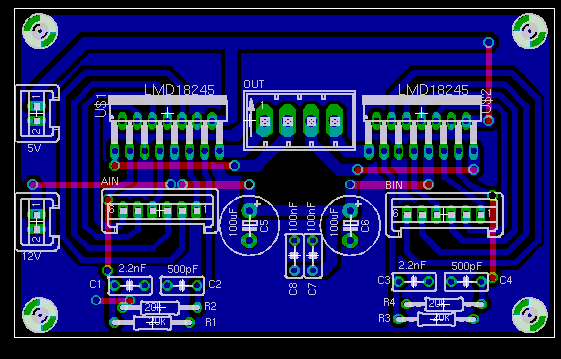

Power Driver PCB

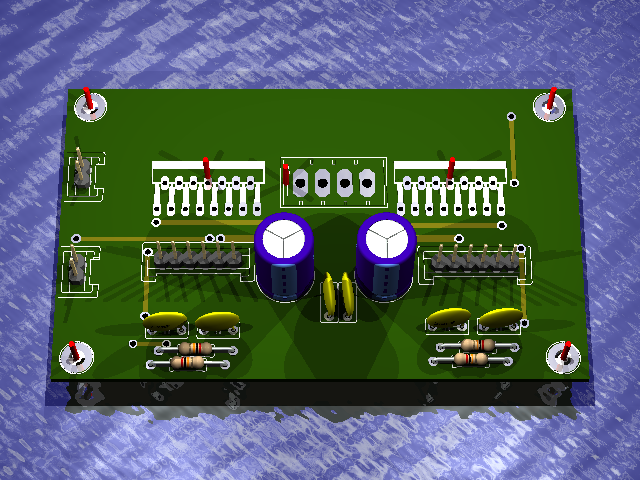

3d
(Sorry but the LMD18245's don't show, I have not  yet changed their macros)
ZIP File

One Big zip file.

Best of luck
Thys
